Vessel type:
Container vessel
Engine type:
Main Engine
Engine Model:
MAN B&W 10K98MC-C
OMD mode:
VN301Plus
Remarks:
- Weld & mount 2x new console bracket on the engine crankcase to mount the VISATRON VN301plus Central Unit (2x for more than 10x suction points);
- Install 2x VN301plus Central Unit (CU no.1 @ cylinder 3 position & CU no. 2 @ cylinder 6 position);
- Re-use existing G3/4″ suction holes on engine crankcase compartment (total 12x suction points);
- Install with VN301plus sensors on the 10x crankcase compartments, 1x chain case compartment & 1x Thrust bearing compartment;
- New hybrid cable installation & layout to all suction points;

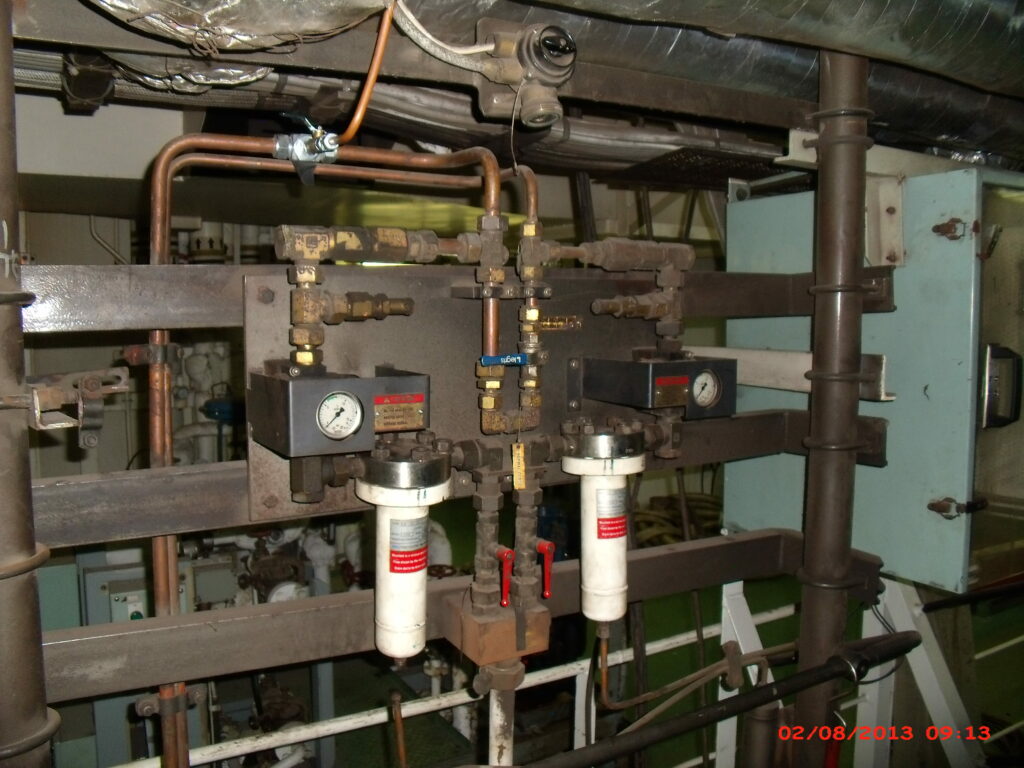

- New compress air supply pipe routing & layout;
- Re-wiring of alarm signal & power supply from OMD to ECR/ECR console;
- Installation of Remote Indicators in ECR console (combining all existing Remote Indicators for Main Engines & Aux Engines);
